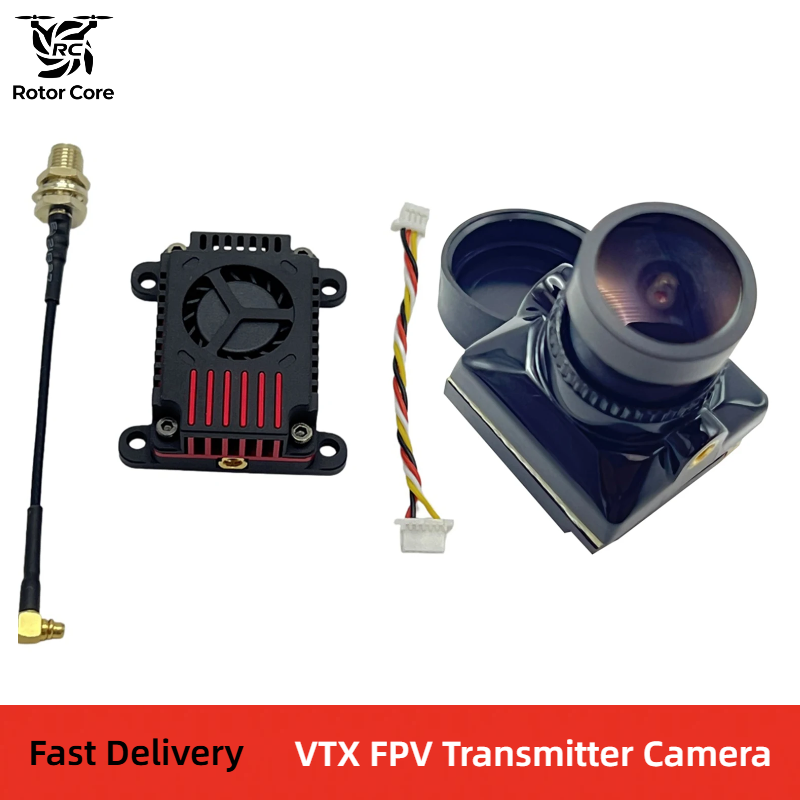

Long Range 5.8Ghz 3W FPV Video Transmitter 3000MW 72CH Video AV Analog VTX and 2.1mm 1500TVL camera for RC Drone
$55.00

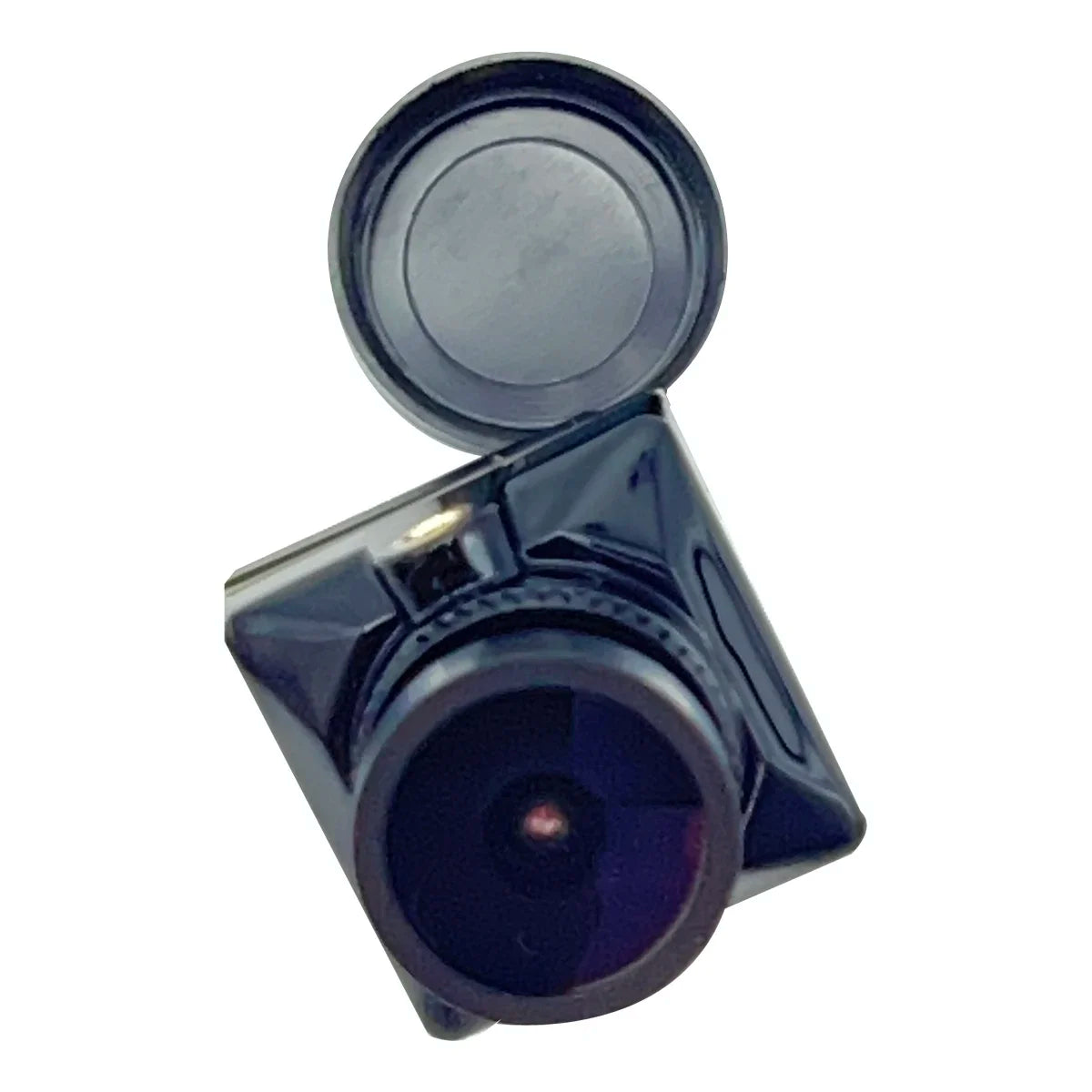

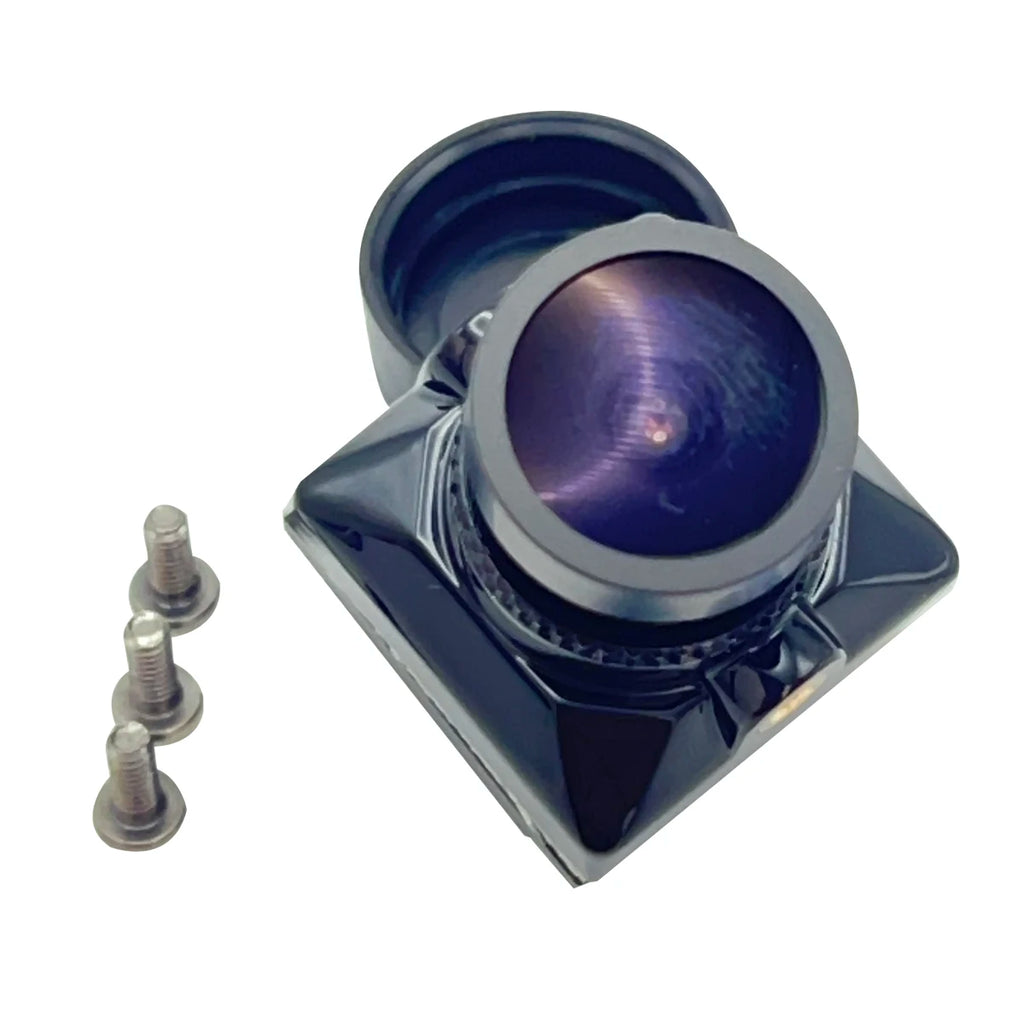

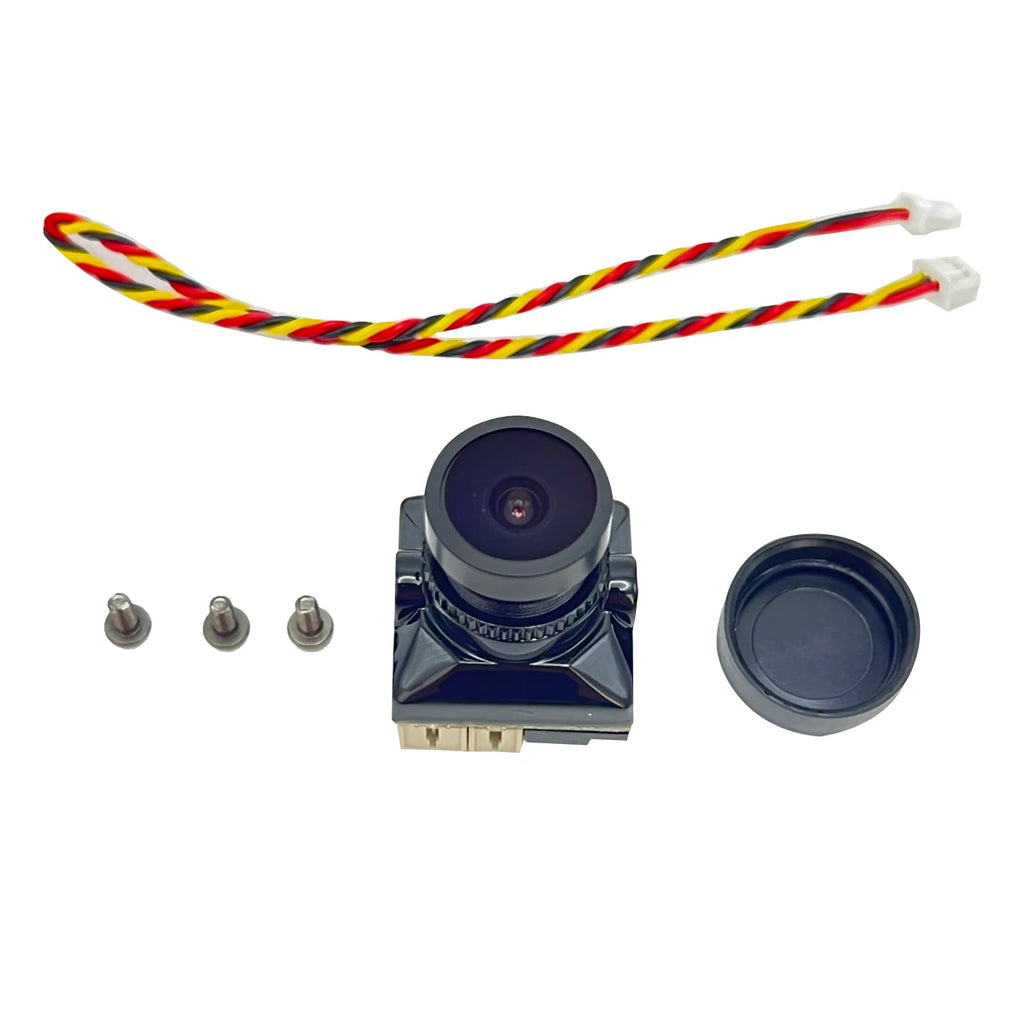

B19 FPV Camera Parameters:
Brand:XFlight Hobby
Model: XF-C-B19
lmage Sensor: 1/3"
Horizontal Resolution: 1500TVL
TV System: NTSC & PAL (changeable)
IMAGE: 16:9
Min. lllumination: 0.0001 lux
Lens: 2.0mm
Color: Black
Video Output: CVBS
OSD Manual: Support
DNR: 3-DNR
FOV: 125°
Language:8 languages
selectableDimensions:19mm*19mm*22mm
WidePower Input DC: 5V-35V
Work Temperature:-20℃-+60℃
Work Humidity:20%-80%
Weight: 8g

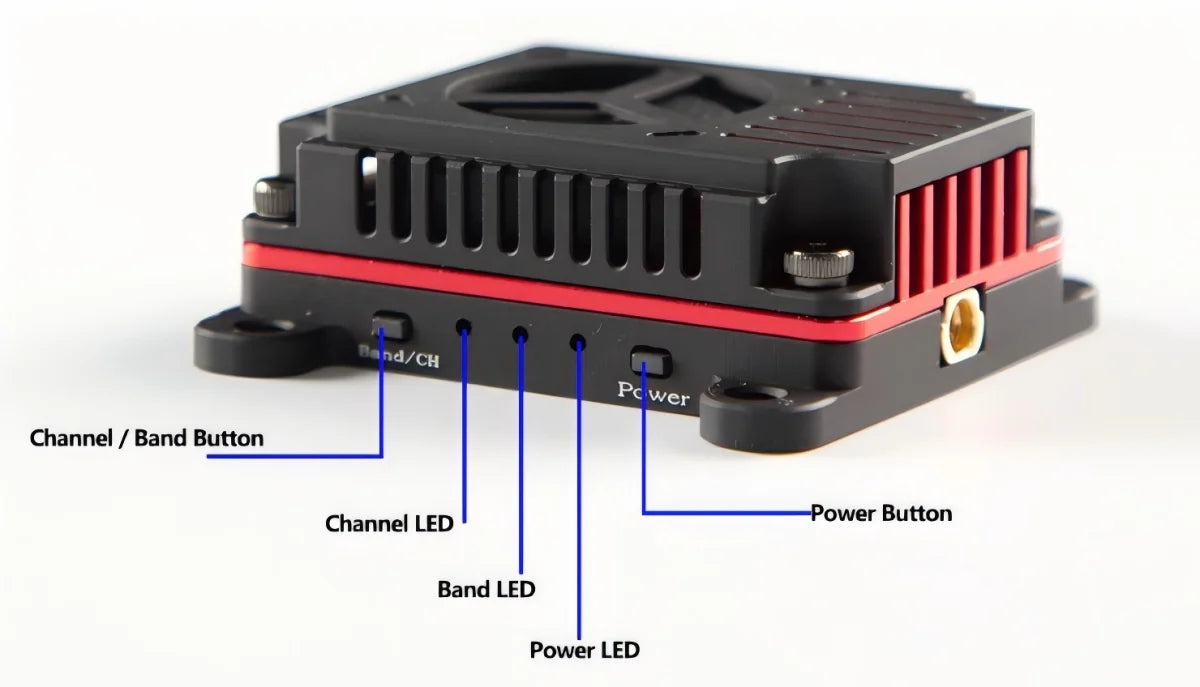

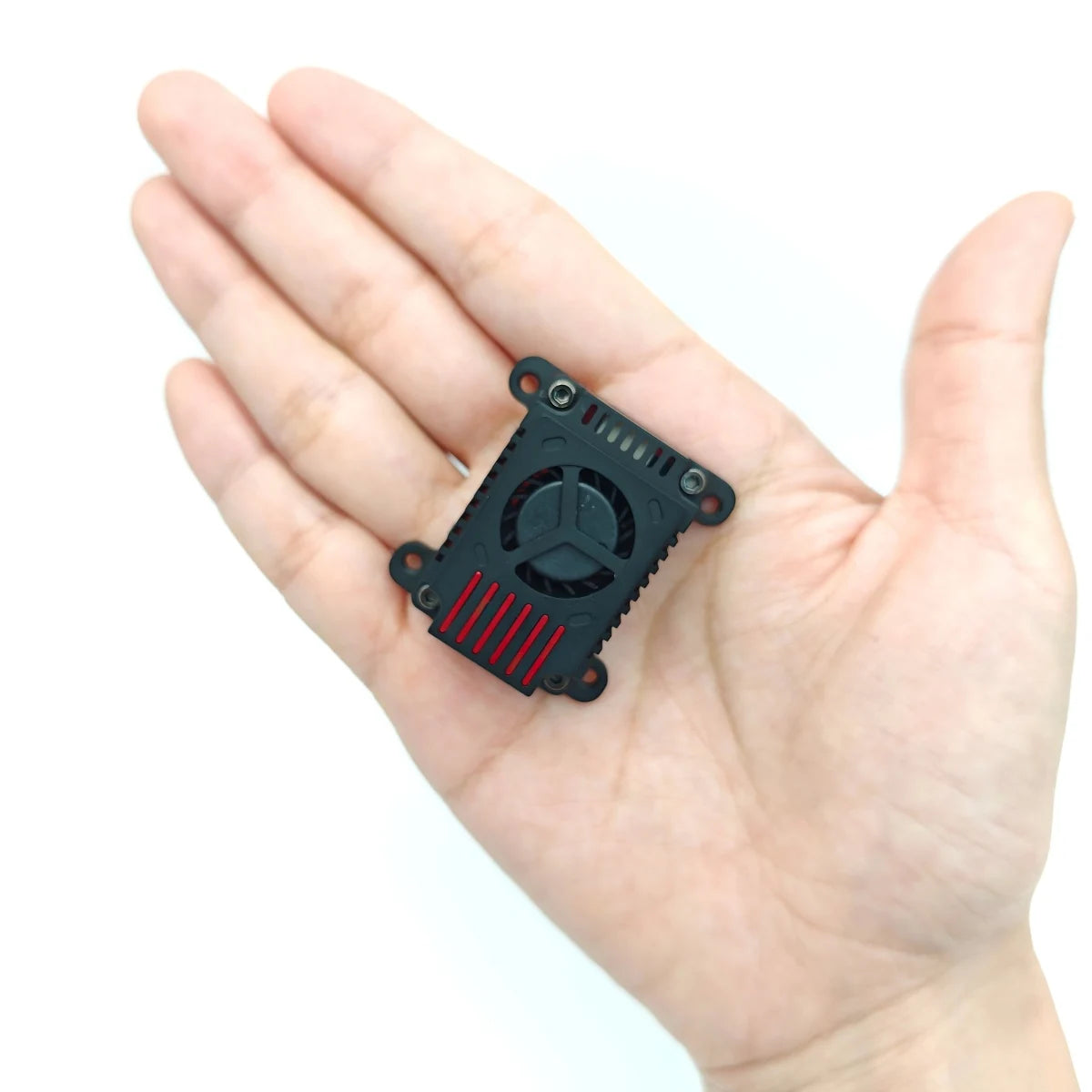

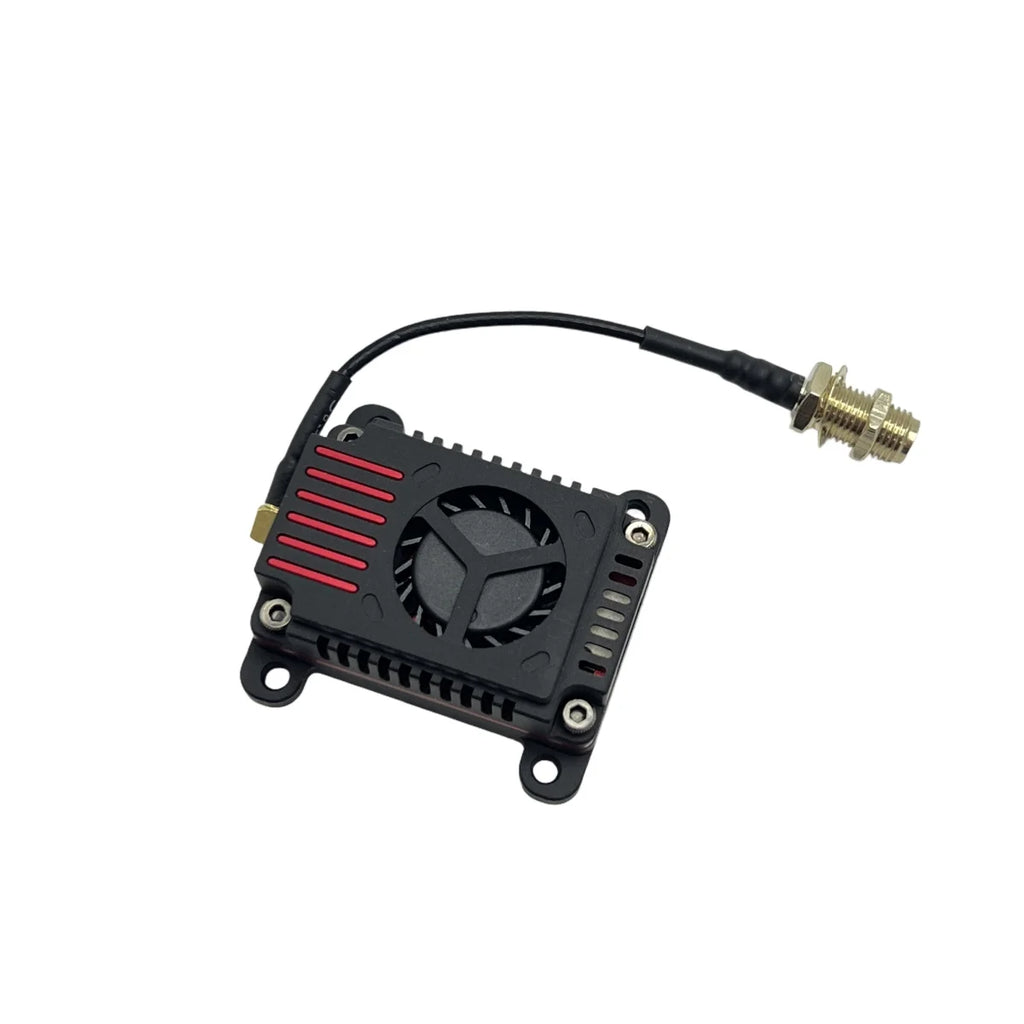

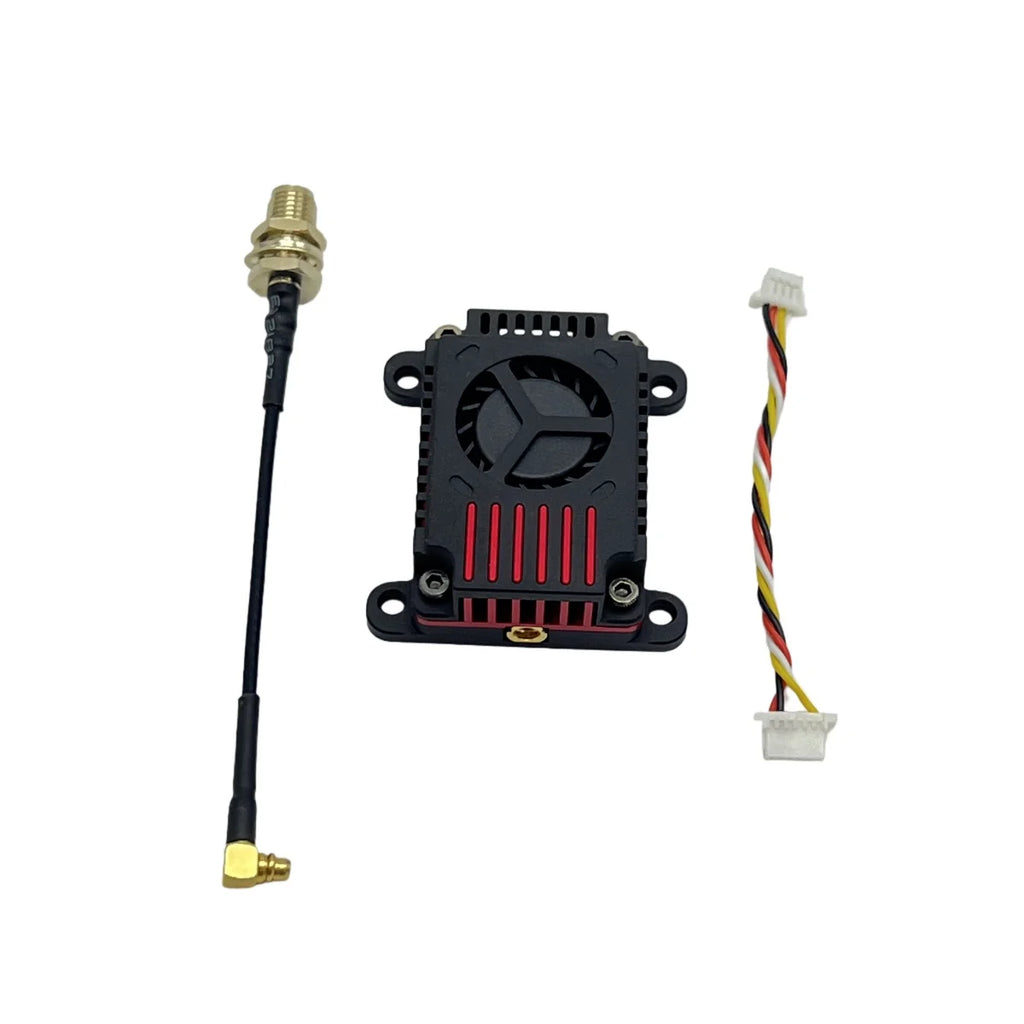

5.8G 3W 72CH VTX Parameters:
1.5.8G 80 frequency points: (A.B.E.F.R.L; 5362MHz -5945MHz);
2. Maximum power: 3W (25mW/1000mW/2000mW/3000mW, adjustable);
3. Input voltage: DC 7V-36V, supports 2-8S battery input
4. Antenna interface: MMCX
5. Communication protocol: IRC Tramp
6. Heat dissipation method: aluminum alloy heat sink+fan
7. Installation hole position: 30.5mm * 30.5mm/ø 3.15mm
8. Product size: 37.7mm * 36.1mm * 11mm
9. Product weight 16g
1.5.8G 80 frequency points: (A.B.E.F.R.L; 5362MHz -5945MHz);
2. Maximum power: 3W (25mW/1000mW/2000mW/3000mW, adjustable);
3. Input voltage: DC 7V-36V, supports 2-8S battery input
4. Antenna interface: MMCX
5. Communication protocol: IRC Tramp
6. Heat dissipation method: aluminum alloy heat sink+fan
7. Installation hole position: 30.5mm * 30.5mm/ø 3.15mm
8. Product size: 37.7mm * 36.1mm * 11mm
9. Product weight 16g
