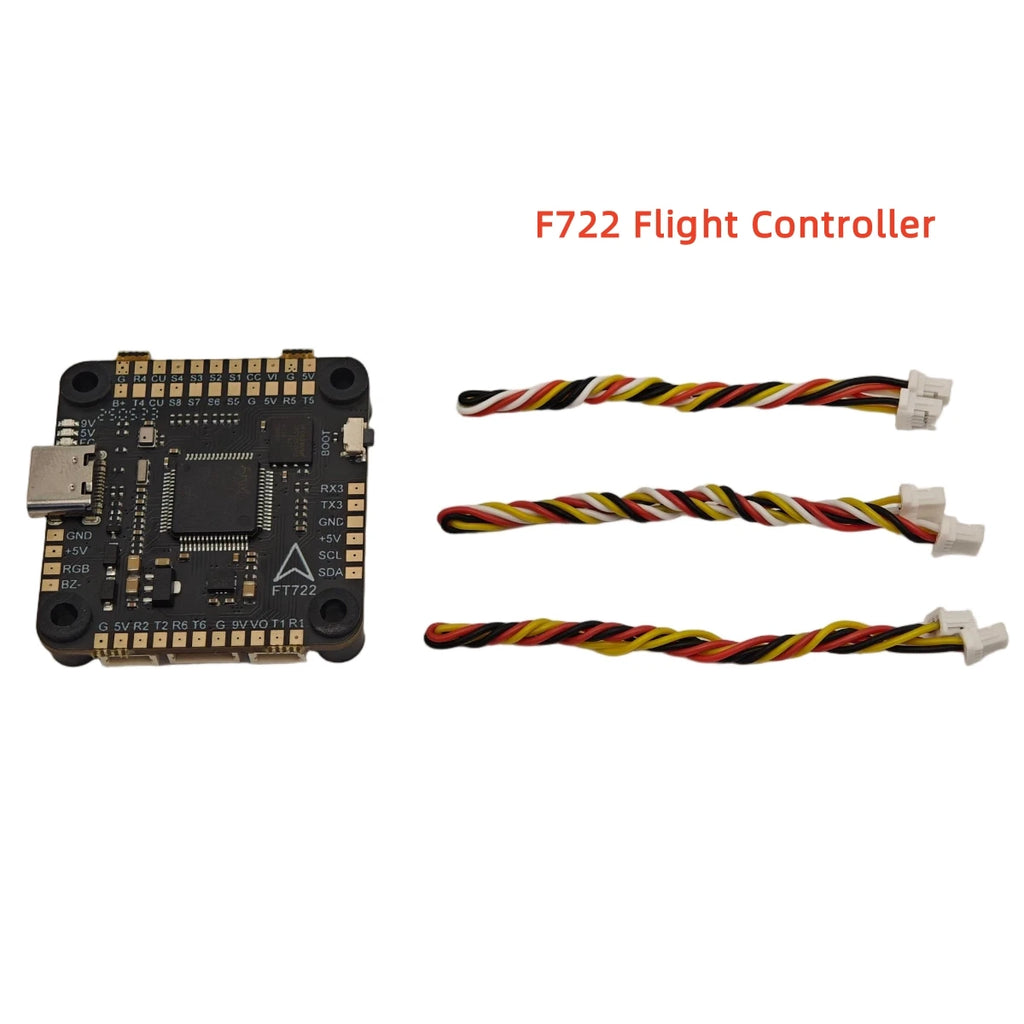

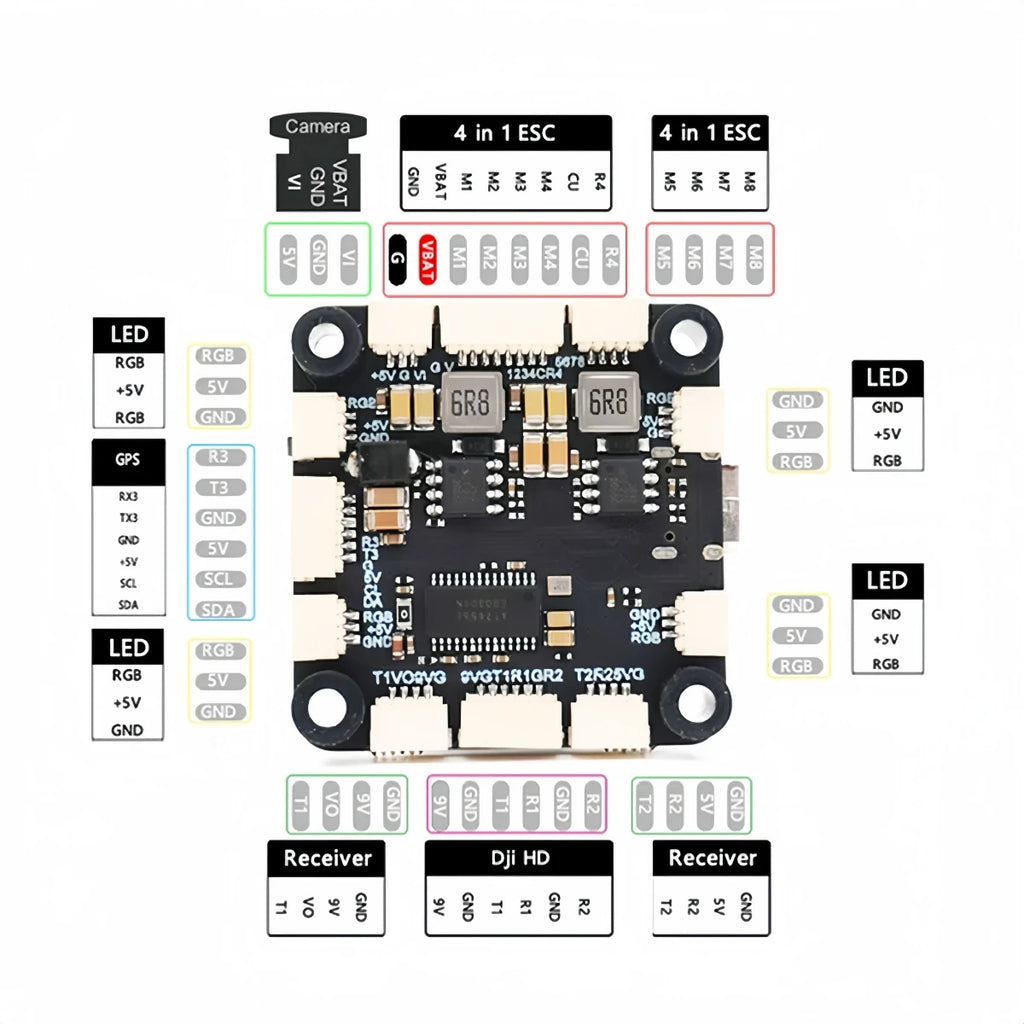

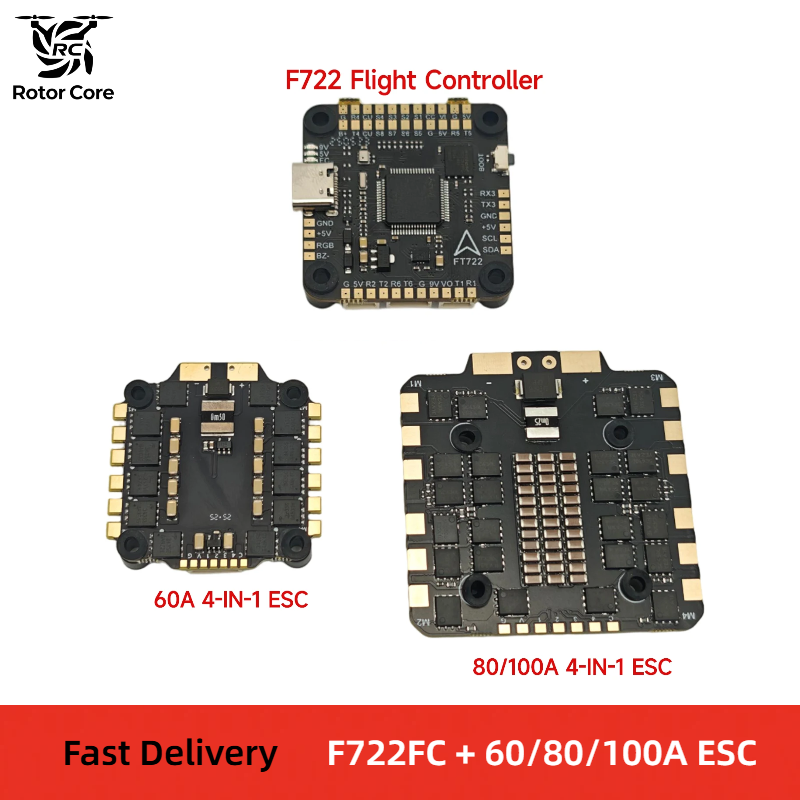

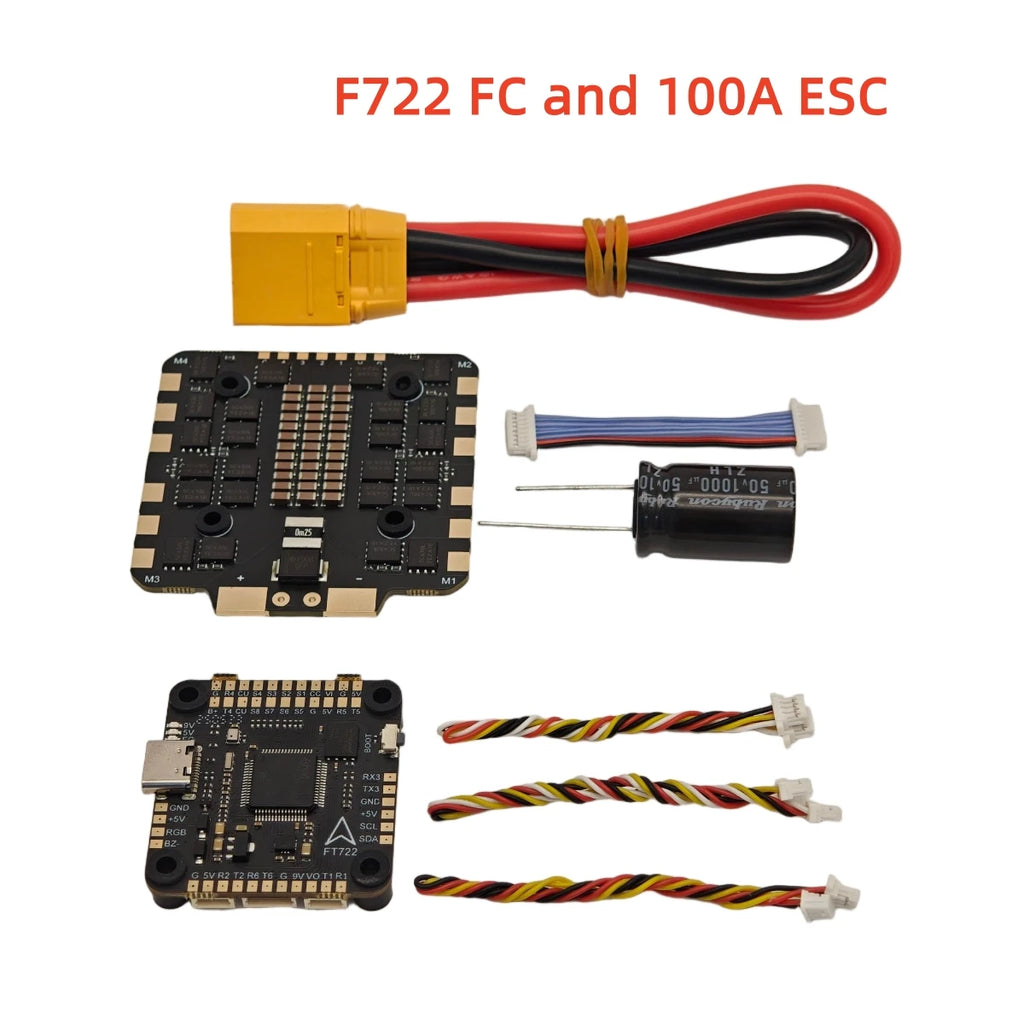

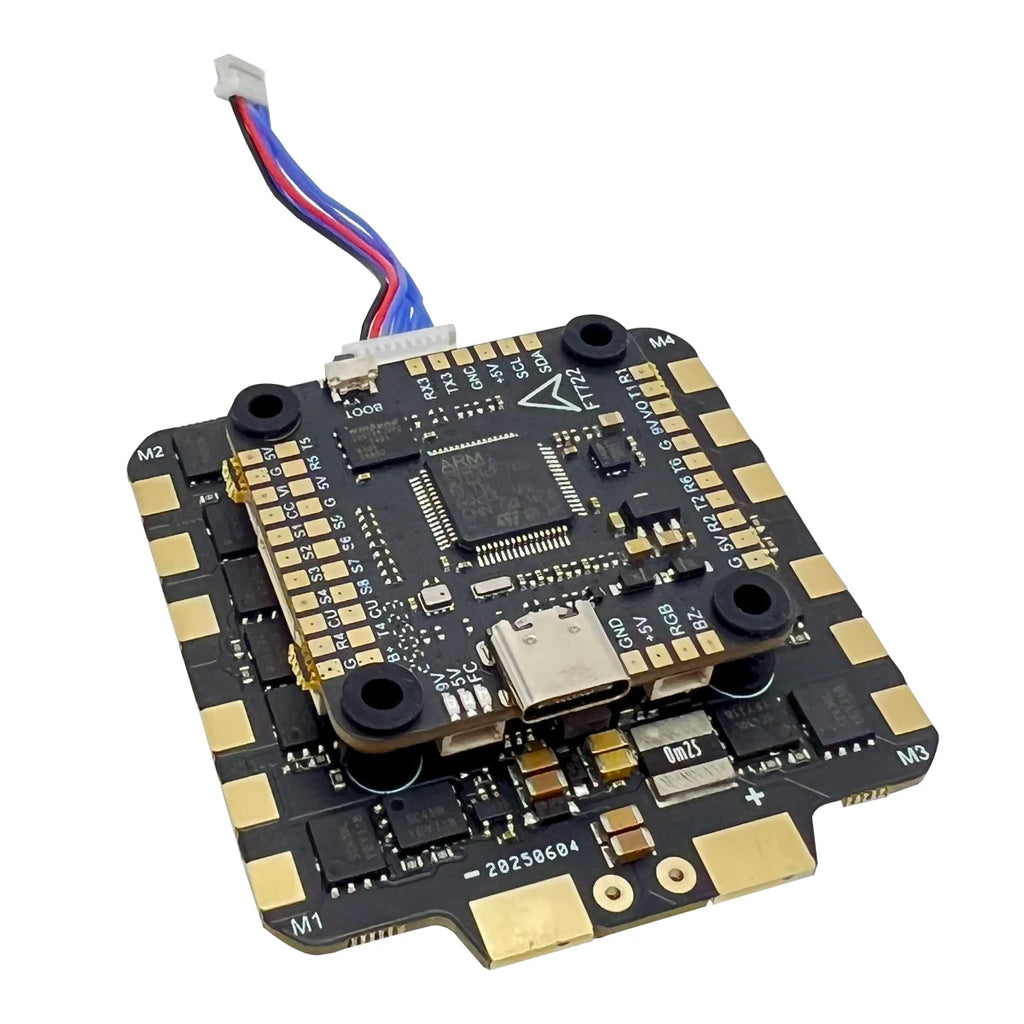

F7 F722 Flight Controller 3-8S BLHELI_S 60/80/100A 4in1 Brushless ESC for 5-10 Inches FPV Drone Racing Drone Parts

Specifications:

MCU: STM32F722RET6 216MHz

Gyroscope: MPU6500/ICM42688 (send at random)

IMU:ICM-42688

OSD: AT7456E

Baro:SPL06-001

Black box: 16MB

6x Uarts: UART 1/2/3/4/5/6

Power:

Input voltage: 3-8S Lipo(11.4-36V)

5V-BEC: 5V/2.5A ±0.1V

10V-BEC: 10V/2A(USER1)

FC Firmware:BetaFlight/INAV

Current port: YES

DFU button: YES

Mounting:

Installation size: 30.5mm × 30.5mm The installation hole is M4 and supports shock column installation

External size 39mm × 37mm

BLS 60A 4-in-1 ESC:
Item Type:BLHELI-S-60A 4in1 ESC HV 2-6S

Size: 42 * 41 * 5mm

Aperture: 30.5 * 30.5mm

Firmware: BLHELI-S J_H_30_REV16_7

Weight: 15g

Input voltage: LIPO 2-6S

Continuous current: 60A

Maximum current: 70A (10 seconds)

Processor: EF8BB21

Drive signal support: DShot150-300-600/Multishot/Oneshot/PMW

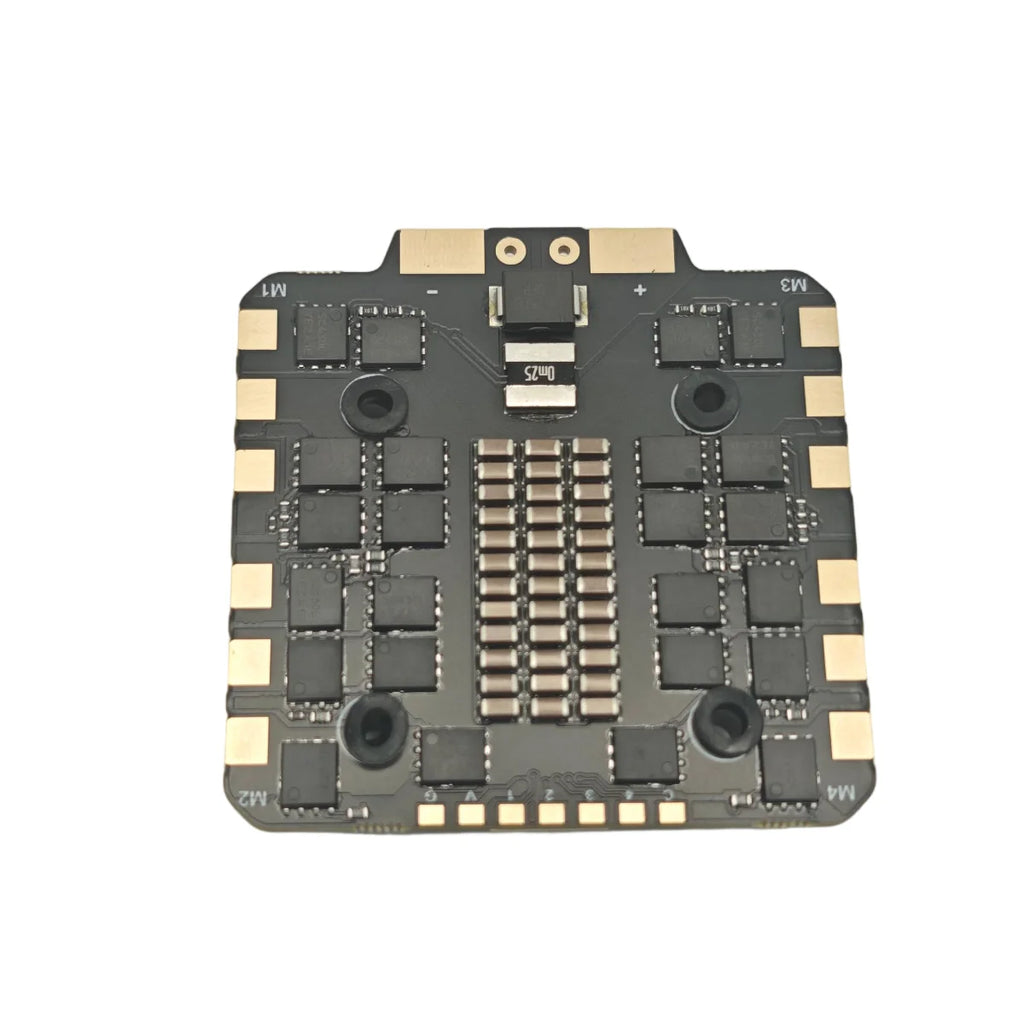

BLS 80/100A 4-in-1 ESC:
MCU: EFM8BB21F16G
MOSFET: High performance MOSFET
Power Input: 3-6S/3-8S LiPo
Continuous Current: 80*4/100*4
Burst Current: 70/90A(10seconds)
ESC Telemetry :NO
ESC Protocol :DSHOT300/600
Firmware: Q_H_40_24_v0.19.2
Mounting :30.5 x 30.5mm( 4mm hole diameter)
Dimension :57(L) * 56(W)
Weight 28g
