Carbon Fiber FPV Drone Frame Kit 7/8/9/10 Inch 295/367/387/427mm WheelBase RC FPV Freestyle Racing Drone Quadcopter
>>Carbon Fiber FPV Drone Frame Kit 7/8/9/10 Inch 295/367/387/427mm WheelBase RC FPV Freestyle Racing Drone Quadcopter
> Basic Functions:
Model: MARK4 V2 7 inch
Frame structure: X-Type
Wheelbase: 295mm
Weight: 185g
packing: electrostatic bag
Size: 230.35mm * 278.52mm
Bottom plate thickness: 3.0mm
Medium plate thickness: 3.0mm
Upper plate thickness: 2.0mm
Arm thickness: 6.0mm
Connecting plate: 2.0mm
Camera side plate thickness: 2.5mm
Camera installation hole spacing: 19mm
Image transmission installation hole spacing: 20*20mm & 30.5*30.5mm
Flight control installation hole spacing: 20*20mm & 30.5*30.5mm
Inner space height: 35mm
Motor installation hole position: 16*16mm & 19*19mm
Model: MARK4 V2 8 inch
Wheelbase: 367mm
Weight: about 214g
Thickness of bottom plate: 3mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2.5mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 19*19mm
Model: MARK4 V2 9 inch
Wheelbase: 387mm
Weight: about 220g
Thickness of bottom plate: 3mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2.5mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 19*19mm

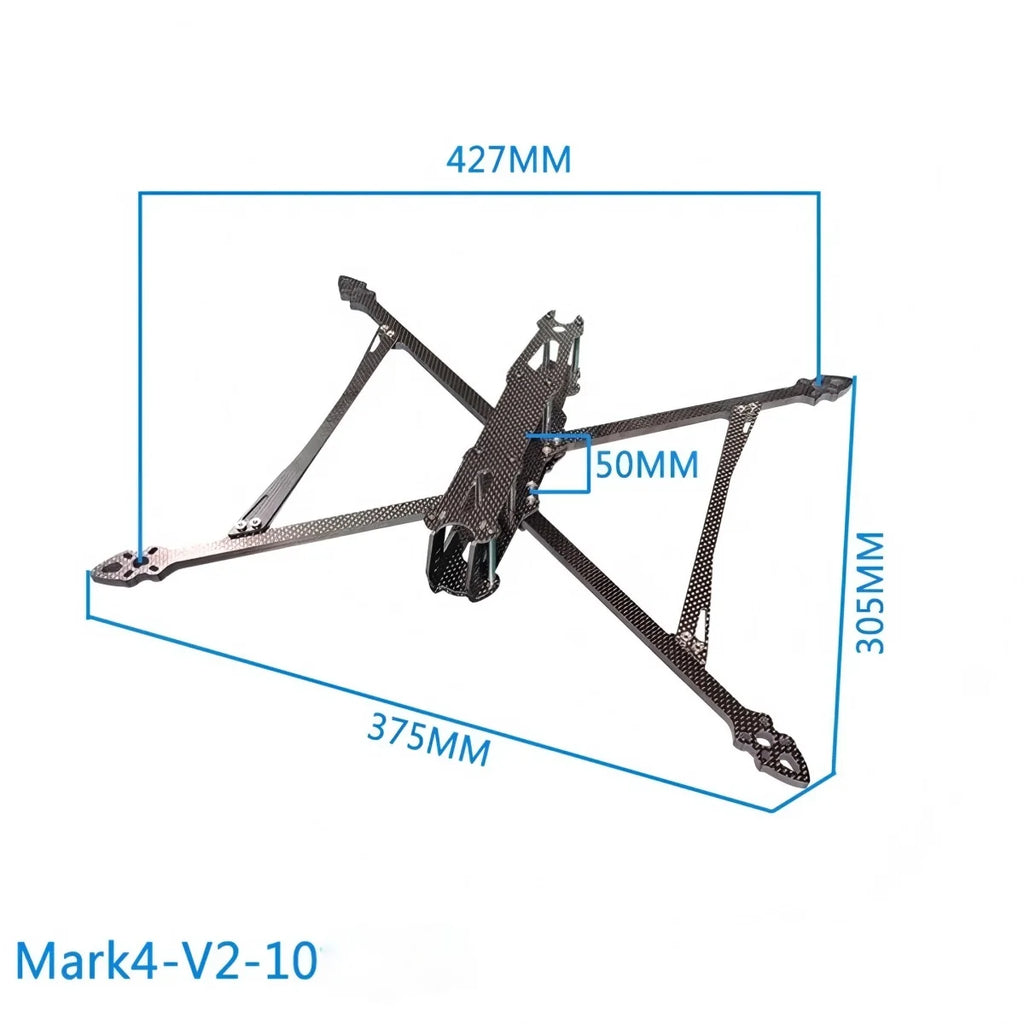

Model: MARK4 V2 10 inch
Wheelbase: 427mm
Weight: about 227g
Thickness of bottom plate: 3mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2.5mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 19*19mm
