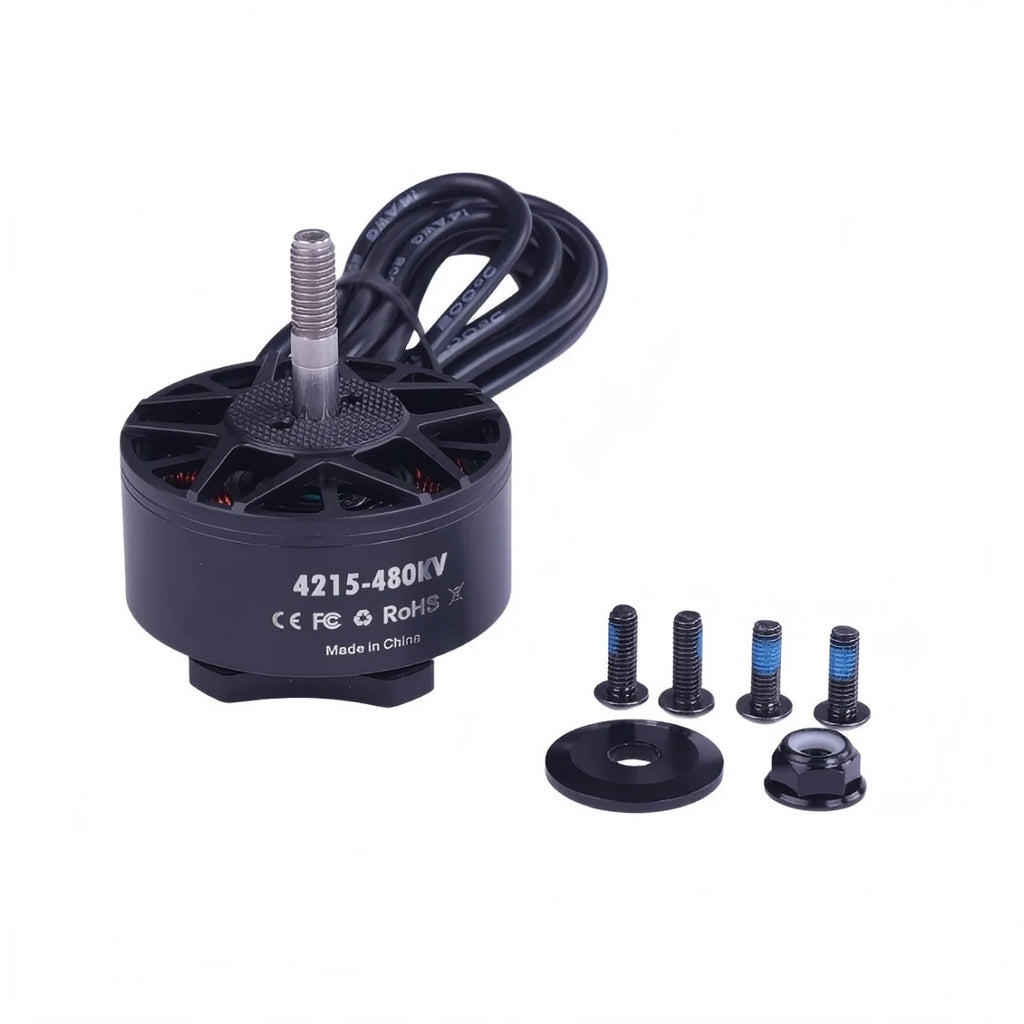

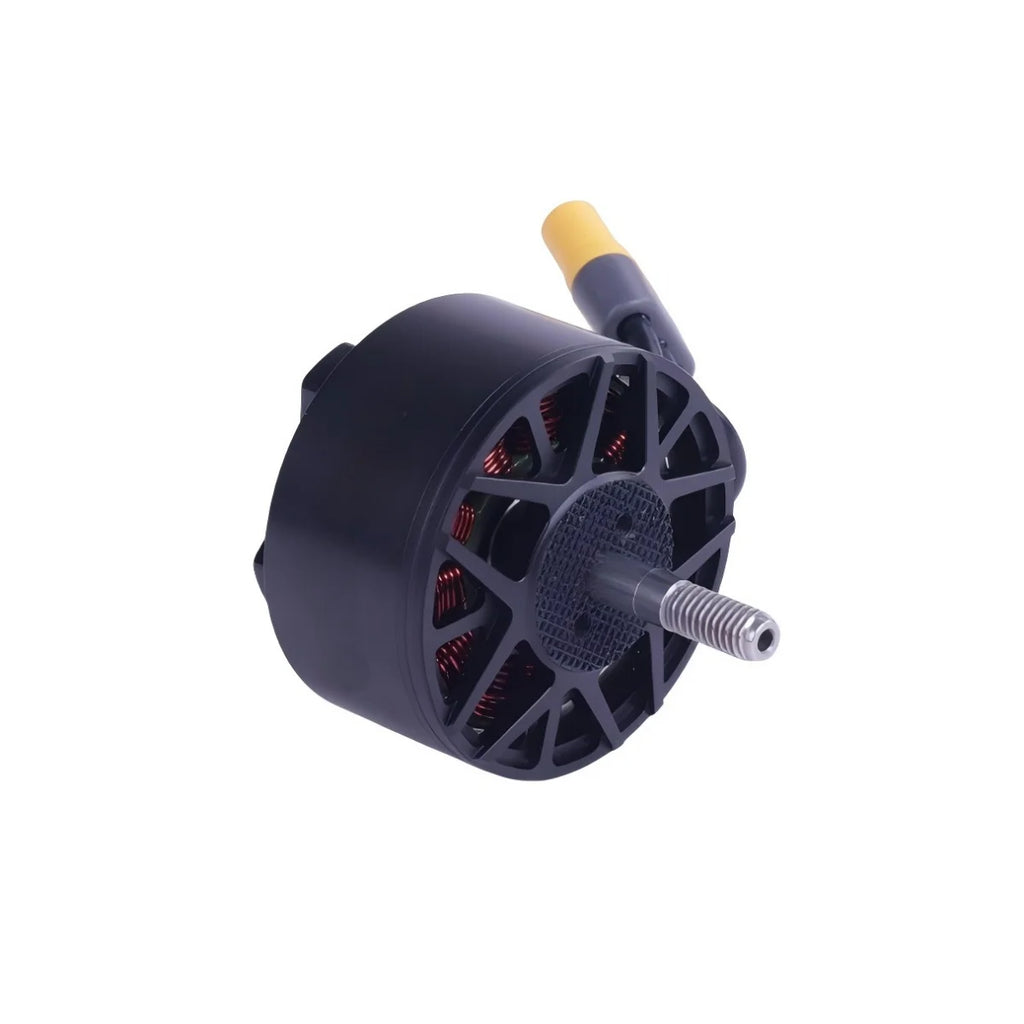

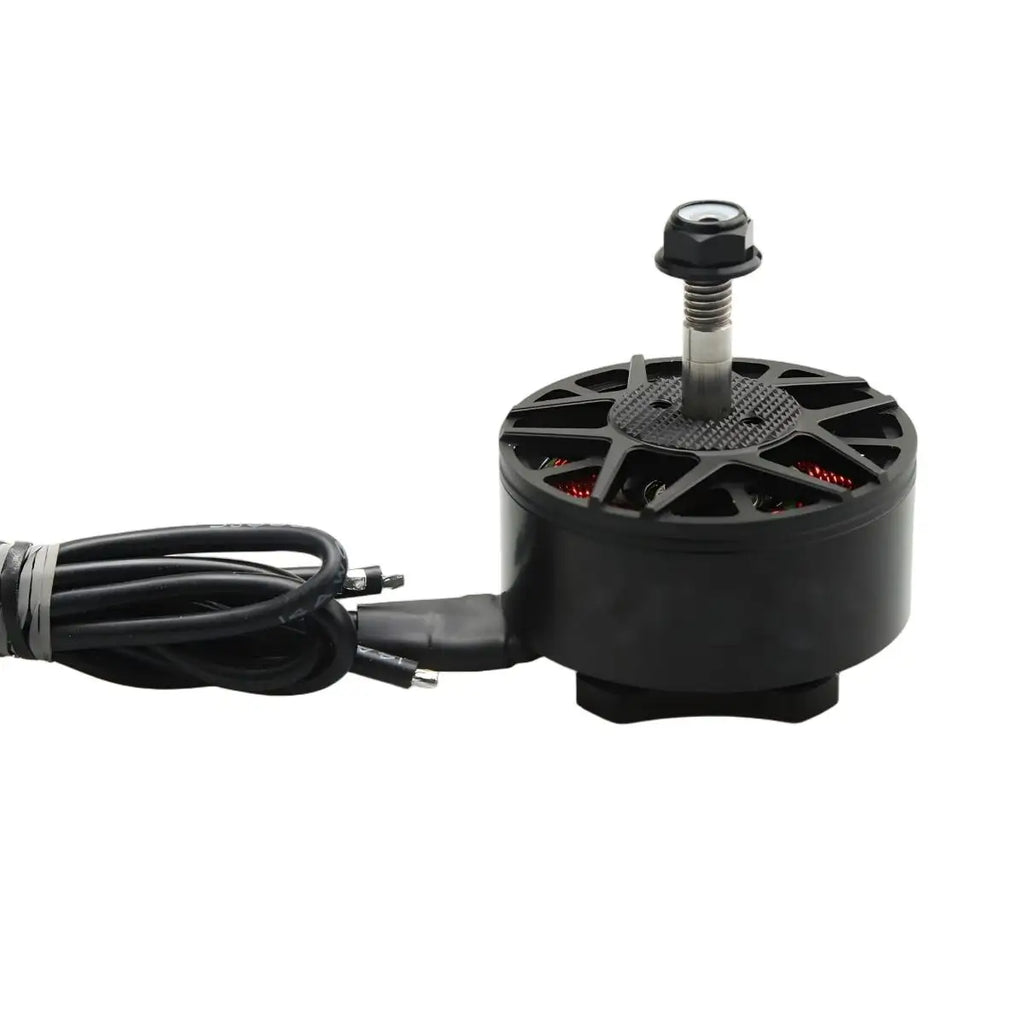

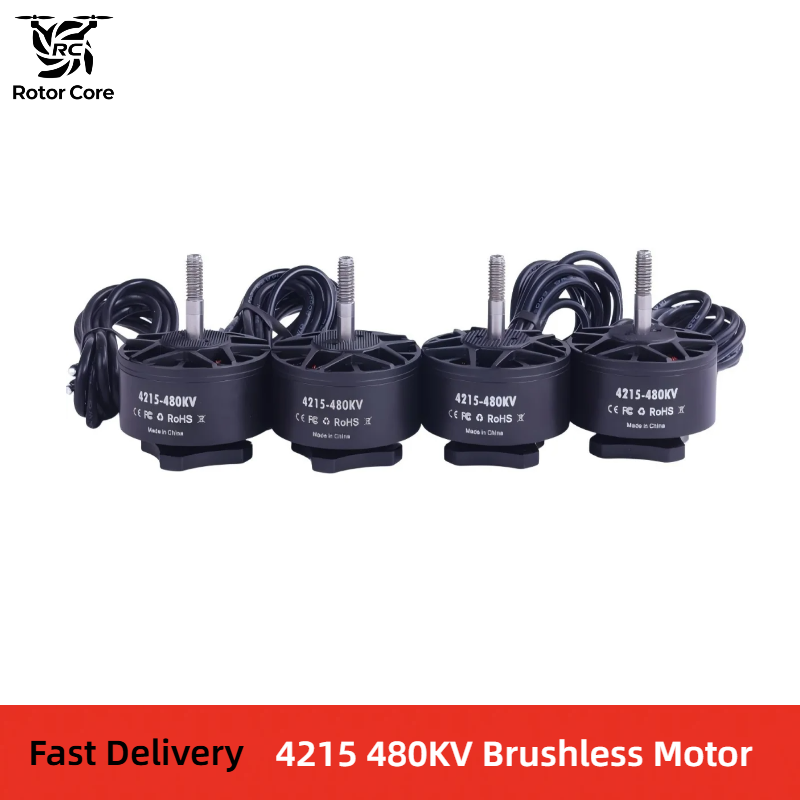

4pcs/lot 4215 480KV Brushless Motor For 13 15 Inch FPV Drone 6S LiPo Long-Range RC Drones
>Product Features:
1.Efficienct 4215 Brushless Motor This 480KV drone motor delivers optimal power-to-weight ratio for long-range FPV drones, solving the common issue of premature battery drain during extended flights;
2.Precision-Balanced for Smooth Operation The factory-direct 4215 motor features CNC-machined components to minimize vibration, ideal for cinematic drone footage where shaky footage ruins shots;
3.Durable Construction for Heavy Payloads With its heavy-duty stator design, this long-range brushless motor reliably carries action cameras or mapping equipment without overheating;
4.Optimized for 13"-15" Propellers Specifically engineered for FPV drone builds, this motor provides the perfect torque for efficient cruising and sudden maneuvers when avoiding obstacles;
5.Corrosion-Resistant Bearings The sealed bearing system in this industrial drone motor withstands moisture and dust, addressing reliability concerns for pilots flying in coastal or desert environments.
> Basic functions:
Brand:XFlight Hobby
Model :4215
KV: 480KV/customized
Pole number: 7
Stator core: Kawasaki 1200
Enameled wire grade: 220℃
Number of stator slots: 12 slots
Shell material: 6061T6
Motor size: 59.2*50.6mm
Propeller installation hole position: M6
Shaft diameter: 6mm
Motor installation hole position: M4*4*30
Lead-out length: 500mm (Black No. 14 silicone wire)
Coil withstand voltage test: 500V
Operating voltage: 6s-8S
No-load current: 1.5A/25V
Interphase internal resistance: 68 milliohms
Maximum tensile force: 5kg
Weight: 231.9g
